British drawing standards (BS8888)

So engineers can understand each others' designs, there are rules that they must follow. BS8888 is a British Standard which sets out how working drawings should be drawn and the symbols that should be used. Having this standard means that engineers can communicate effectively.

Line Types

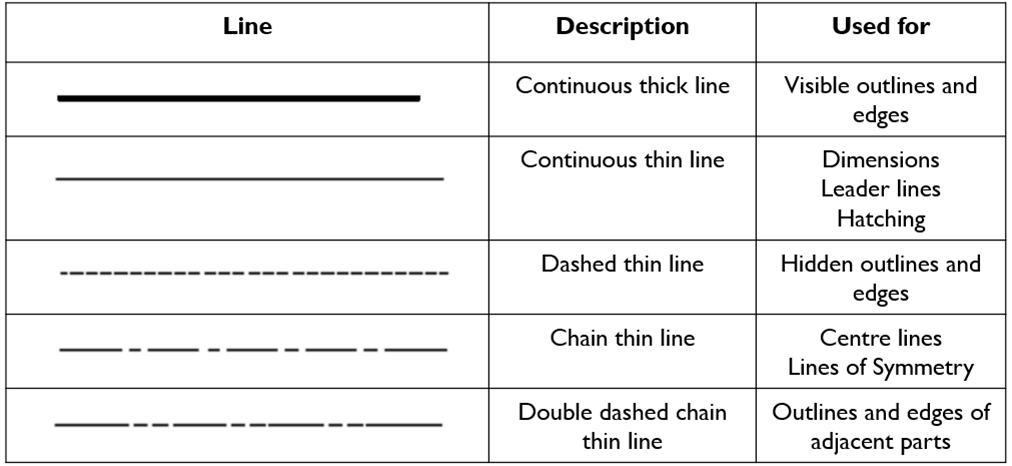

Different shaped lines are used to show various different things on a drawing. Below are some of the most common ones.
